Features:

• For use with any duplex connect test lead and extension lead
• Simple push and twist for quick change from lead
• Sprung twisting tips provide 2.4 kg of spring force
• Hardened and tempered probe tips ideal for cutting through surface coatings or corrosion on test pieces
• Maximum current rating: 10 A
• Connector to probe tip resistance: 14m ohm
• Probe spacing between P and C tips: 10 mm

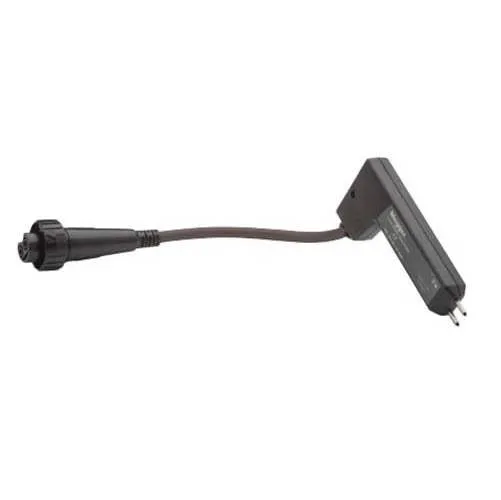

The Megger 1006-449 is a Duplex connect twist probe. Duplex connect handspike with sprung twisting tips fitted with a connector socket for easy connection to any connect test lead. As the probe is pressed onto the test piece the tips compress and twist at the same time providing 2.4 kg of spring force. Probe tips are hardened and tempered before four equal-spaced flats are ground to provide a square shape tip, making these probes ideal for cutting through surface coatings or corrosion on test piece for a good contact. To assist reliability the probes internal electrical connections are assisted by using an innovative volute spring eliminating the need for a separate current carrying brad.
